8.26. Reliable Server Pooling (RSerPool)
The Reliable Server Pooling (RSerPool) windows show statistics for the different protocols of Reliable Server Pooling (RSerPool):
-

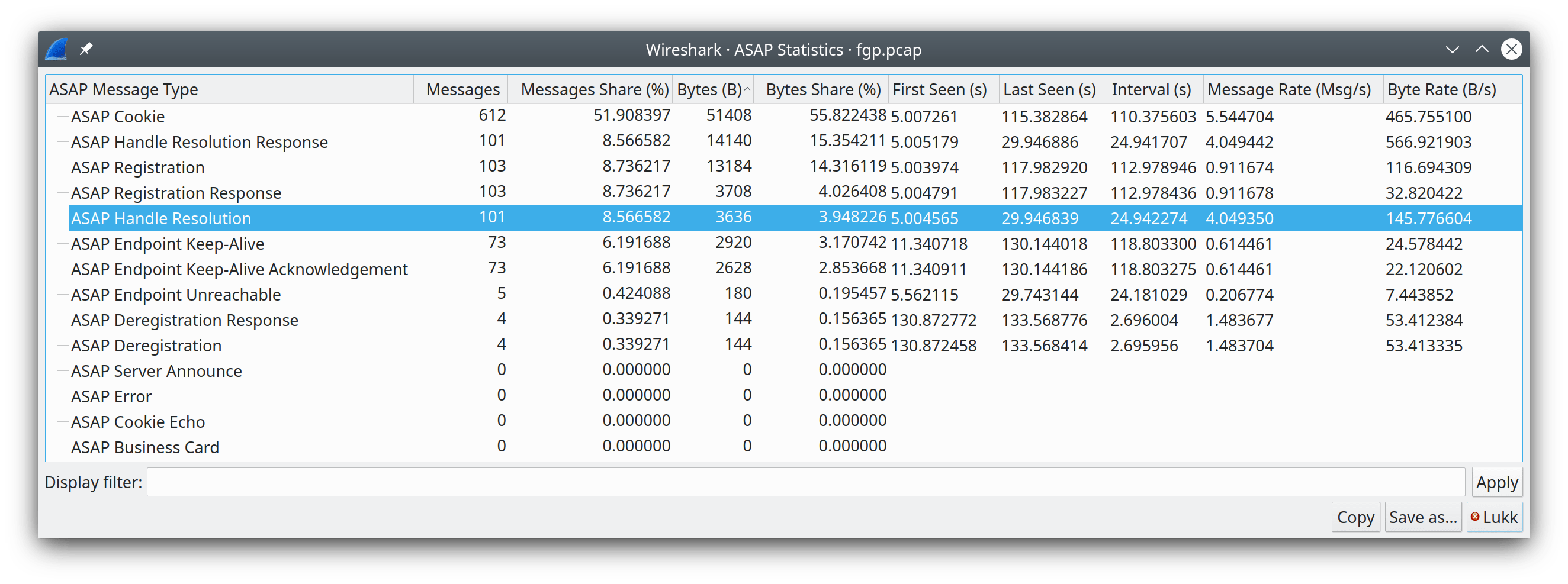

Aggregate Server Access Protocol (ASAP)
-

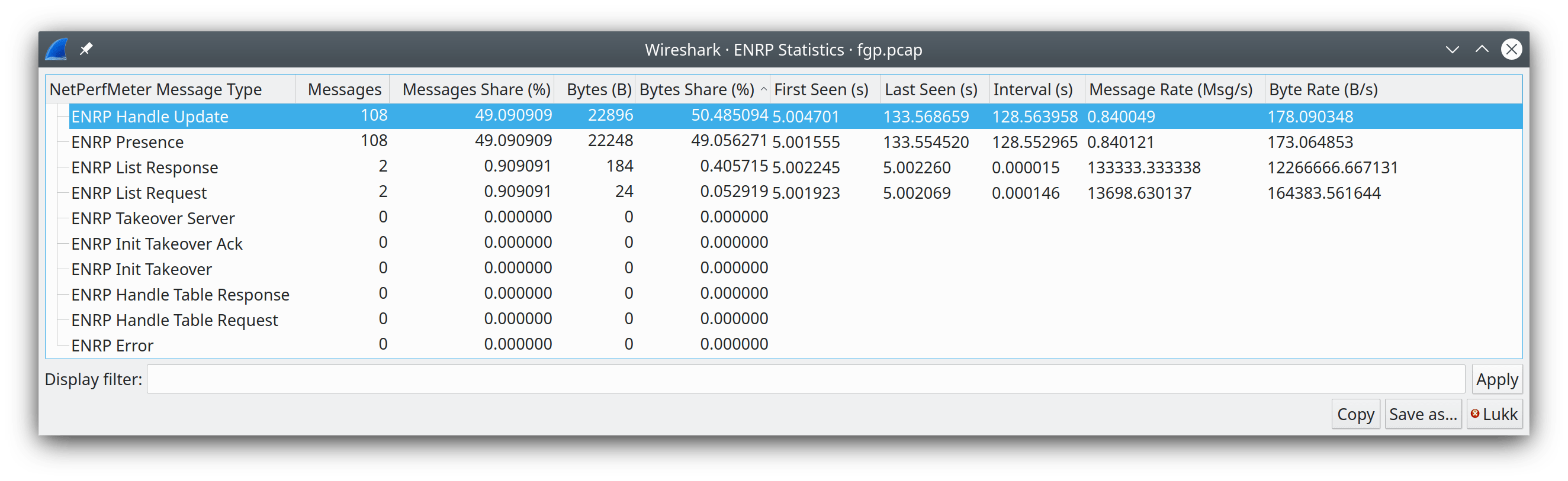

Endpoint Handlespace Redundancy Protocol (ENRP)
Furthermore, statistics for application protocols provided by RSPLIB are provided as well:
-

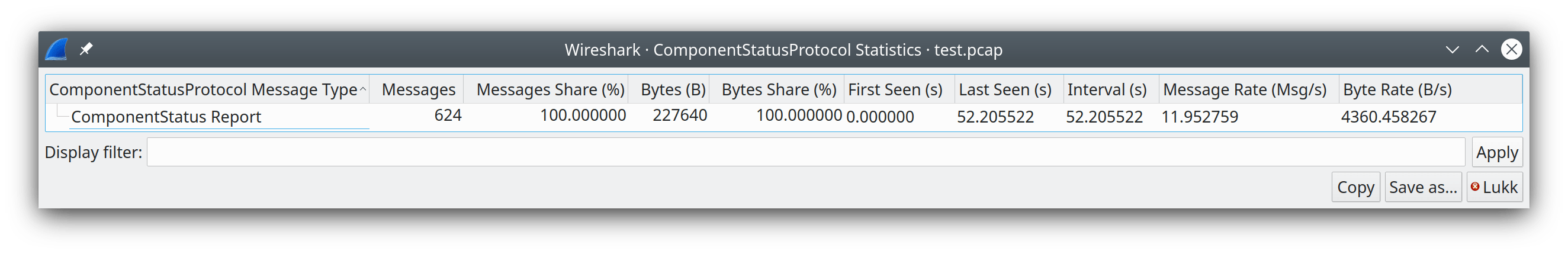

Component Status Protocol (CSP)
-

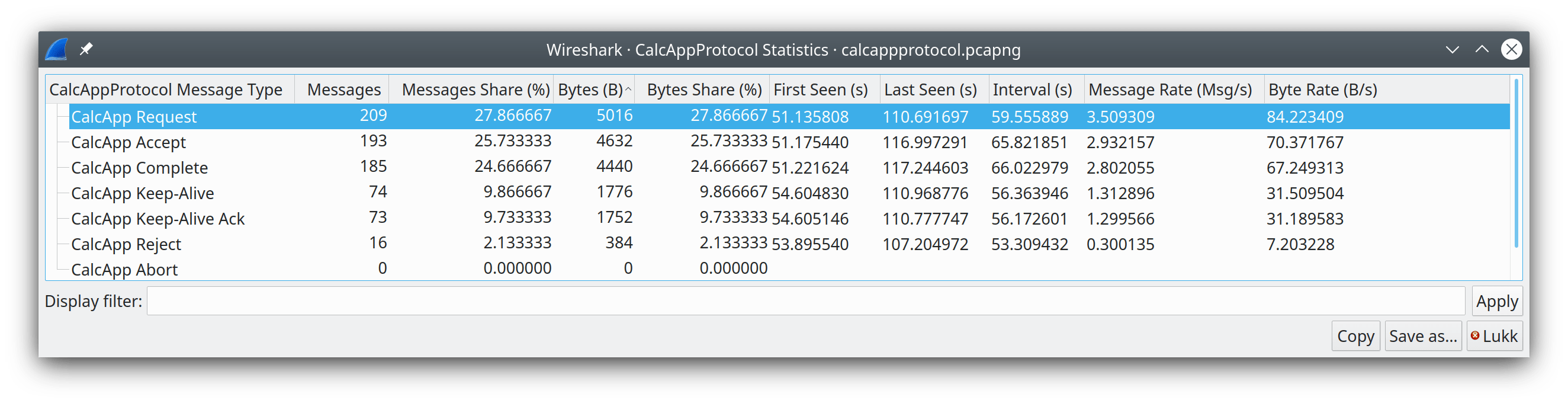

CalcApp Protocol
-

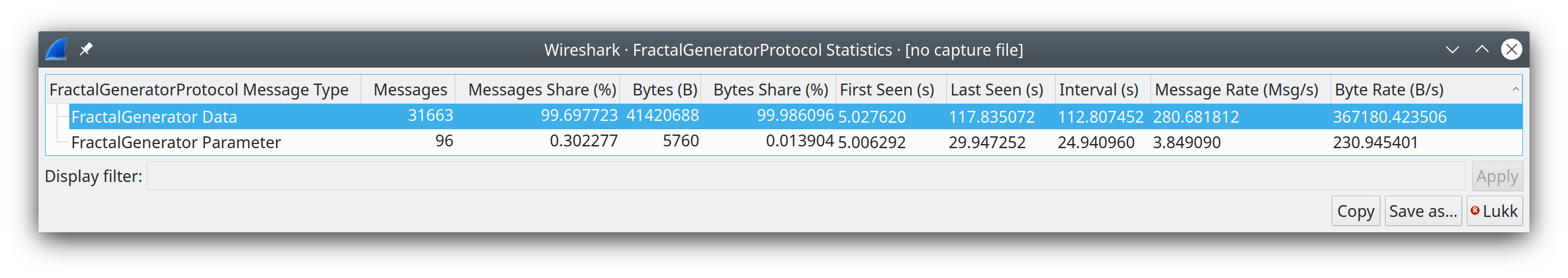

Fractal Generator Protocol
-

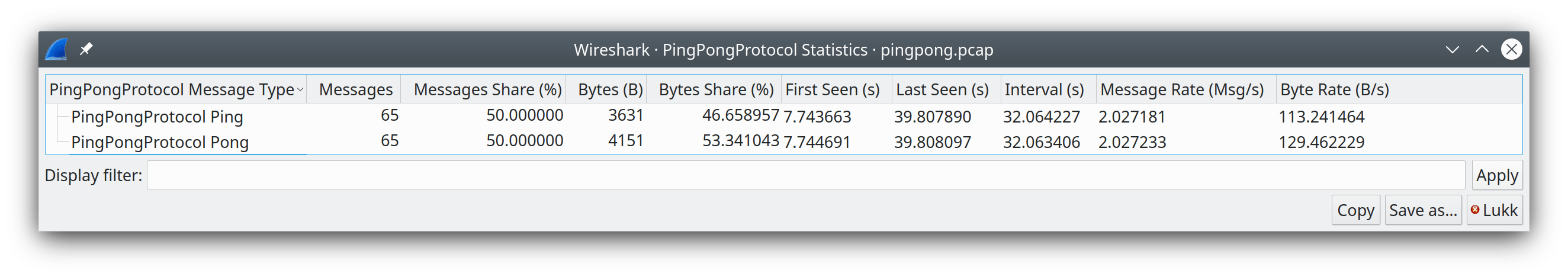

Ping Pong Protocol
-

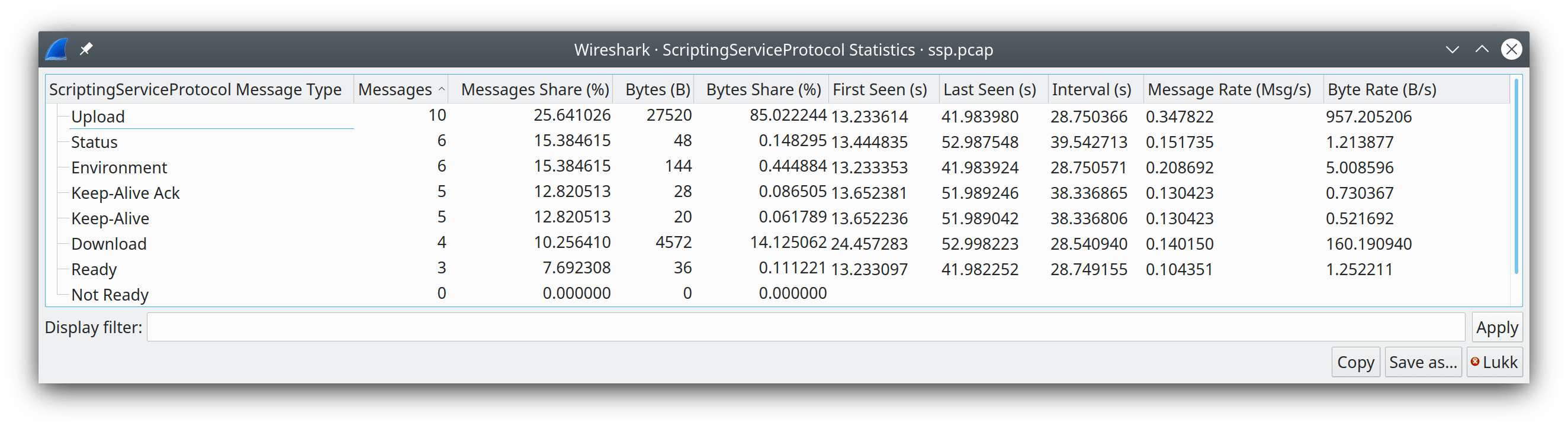

Scripting Service Protocol (SSP)
With these statistics you can:
-
Observed number of messages and bytes per message type.
-
The share of messages and bytes for each message type.
-
See the first and last occurrence of each message type.
-
See the interval between first and last occurrence of each message type (if there are at least 2 messages of the corresponding type).
-
See the message and byte rate within the interval for each message type (if there are at least 2 messages of the corresponding type).
See Thomas Dreibholz’s Reliable Server Pooling (RSerPool) Page and Chapter 3 of Reliable Server Pooling – Evaluation, Optimization and Extension of a Novel IETF Architecture for more details about RSerPool and its protocols.
