Public Member Functions | Protected Slots | Protected Member Functions | Protected Attributes | List of all members
WiresharkDialog Class Reference

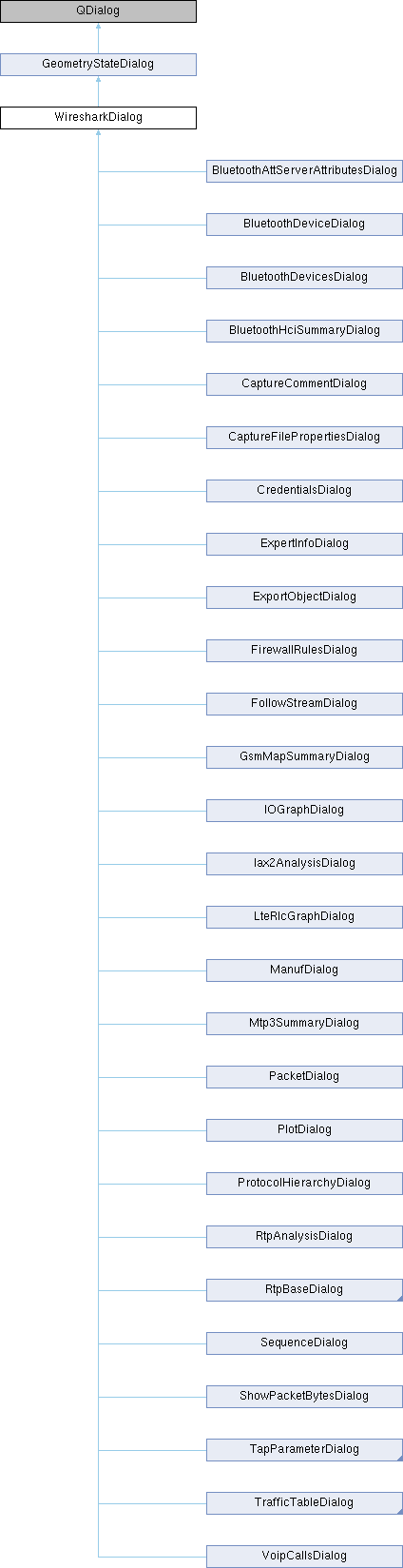

Inheritance diagram for WiresharkDialog:
GeometryStateDialog BluetoothAttServerAttributesDialog BluetoothDeviceDialog BluetoothDevicesDialog BluetoothHciSummaryDialog CaptureCommentDialog CaptureFilePropertiesDialog CredentialsDialog ExpertInfoDialog ExportObjectDialog FirewallRulesDialog FollowStreamDialog GsmMapSummaryDialog IOGraphDialog Iax2AnalysisDialog LteRlcGraphDialog ManufDialog Mtp3SummaryDialog PacketDialog ProtocolHierarchyDialog RtpAnalysisDialog RtpPlayerDialog RtpStreamDialog SequenceDialog ShowPacketBytesDialog TapParameterDialog TrafficTableDialog VoipCallsDialog

Public Member Functions

 WiresharkDialog (QWidget &parent, CaptureFile &capture_file)

bool fileClosed () const
 true if the file has been closed, false otherwise.

- Public Member Functions inherited from GeometryStateDialog
 GeometryStateDialog (QWidget *parent, Qt::WindowFlags f=Qt::Window)

void setWindowModality (Qt::WindowModality windowModality)


Protected Slots

void captureEvent (CaptureEvent)


Protected Member Functions

virtual void keyPressEvent (QKeyEvent *event)

virtual void accept ()

virtual void reject ()

void beginRetapPackets ()
 Mark the start of a code block that retaps packets. If the user closes the dialog while tapping, the dialog will not be destroyed until endRetapPackets is called.

virtual void endRetapPackets ()
 Mark the end of a code block that retaps packets. If the user has closed the dialog it will be desroyed at this point.

void setWindowSubtitle (const QString &subtitle)
 Set the window subtitle, e.g. "Foo Timeouts". The subtitle and file name will be added to the dialog window title.

const QString & windowSubtitle ()

virtual void updateWidgets ()

bool registerTapListener (const char *tap_name, void *tap_data, const char *filter, unsigned flags, tap_reset_cb tap_reset, tap_packet_cb tap_packet, tap_draw_cb tap_draw)
 Convenience wrapper for register_tap_listener. Tap listeners registered via this function are automatically removed during destruction. They can also be explicitly removed using remove_tap_listener or removeTapListeners.

virtual void removeTapListeners ()
 Remove all tap listeners registered via registerTapListener.

bool dialogClosed () const
 Check to see if the user has closed (and not minimized) the dialog.

int retapDepth () const
 Check to see if we're currently retapping. If this is positive, tapping will fail in process_specified_records.

virtual void captureFileClosing ()
 Called when the capture file is about to close. This can be used to disconnect taps and similar actions. updateWidgets() is called at the end. To enable/disable widgets captureFileClosed() is more suitable.

virtual void captureFileClosed ()
 Called when the capture file was closed. This can be used to enable or disable widgets according to the state of file_closed_. updateWidgets() is called at the end.

- Protected Member Functions inherited from GeometryStateDialog
void loadGeometry (int width=0, int height=0, const QString &dialog_name=QString())

void loadSplitterState (QSplitter *splitter=nullptr)


Protected Attributes

CaptureFilecap_file_

bool file_closed_


Member Function Documentation

◆ beginRetapPackets()

void WiresharkDialog::beginRetapPackets ( )
protected

Mark the start of a code block that retaps packets. If the user closes the dialog while tapping, the dialog will not be destroyed until endRetapPackets is called.

This is automatically called when tapping begins, but might need to be called explicilty if any member functions are called or variables are accessed after tapping is finished.

◆ captureFileClosed()

void WiresharkDialog::captureFileClosed ( )
protectedvirtual

Called when the capture file was closed. This can be used to enable or disable widgets according to the state of file_closed_. updateWidgets() is called at the end.

Reimplemented in BluetoothAttServerAttributesDialog, BluetoothDevicesDialog, BluetoothHciSummaryDialog, FollowStreamDialog, RtpStreamDialog, ShowPacketBytesDialog, and VoipCallsDialog.

◆ captureFileClosing()

void WiresharkDialog::captureFileClosing ( )
protectedvirtual

Called when the capture file is about to close. This can be used to disconnect taps and similar actions. updateWidgets() is called at the end. To enable/disable widgets captureFileClosed() is more suitable.

Reimplemented in BluetoothDeviceDialog, BluetoothHciSummaryDialog, ConversationDialog, EndpointDialog, IOGraphDialog, LteMacStatisticsDialog, LteRlcStatisticsDialog, MulticastStatisticsDialog, PacketDialog, RtpStreamDialog, ShowPacketBytesDialog, VoipCallsDialog, and WlanStatisticsDialog.

◆ dialogClosed()

bool WiresharkDialog::dialogClosed ( ) const
inlineprotected

Check to see if the user has closed (and not minimized) the dialog.

Returns
true if the dialog has been closed, false otherwise.

◆ endRetapPackets()

void WiresharkDialog::endRetapPackets ( )
protectedvirtual

Mark the end of a code block that retaps packets. If the user has closed the dialog it will be desroyed at this point.

This is automatically called when tapping ends, but might need to be called explicilty if any member functions are called or variables are accessed after tapping is finished.

◆ registerTapListener()

bool WiresharkDialog::registerTapListener ( const char *  tap_name,
void *  tap_data,
const char *  filter,
unsigned  flags,
tap_reset_cb  tap_reset,
tap_packet_cb  tap_packet,
tap_draw_cb  tap_draw
)
protected

Convenience wrapper for register_tap_listener. Tap listeners registered via this function are automatically removed during destruction. They can also be explicitly removed using remove_tap_listener or removeTapListeners.

Shows a warning dialog if registration is unsuccessful.

Parameters
tap_nameA registered tap name.
tap_dataA unique pointer. Usually 'this'.
filterA display filter.
flagsSee register_tap_listener.
tap_resetReset callback.
tap_packetPer-packet callback.
tap_drawDraw callback.

◆ removeTapListeners()

void WiresharkDialog::removeTapListeners ( )
protectedvirtual

Remove all tap listeners registered via registerTapListener.

Reimplemented in VoipCallsDialog.

◆ retapDepth()

int WiresharkDialog::retapDepth ( ) const
inlineprotected

Check to see if we're currently retapping. If this is positive, tapping will fail in process_specified_records.

Returns
The current retap depth. (In current implementation, 0 or 1.)

◆ setWindowSubtitle()

void WiresharkDialog::setWindowSubtitle ( const QString &  subtitle)
protected

Set the window subtitle, e.g. "Foo Timeouts". The subtitle and file name will be added to the dialog window title.

Parameters
subtitleThe subtitle to add. It should be unique, short, and descriptive.

The documentation for this class was generated from the following files:
