RpcServiceResponseTimeDialog Class Reference

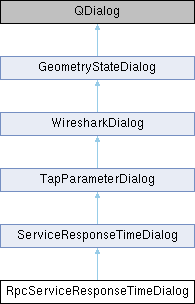

Inheritance diagram for RpcServiceResponseTimeDialog:

Public Types
enum	RpcFamily { DceRpc , OncRpc }

Public Slots
void	dceRpcProgramChanged (const QString &program_name)
void	oncRpcProgramChanged (const QString &program_name)
Public Slots inherited from ServiceResponseTimeDialog
void	endRetapPackets ()

Public Member Functions
	RpcServiceResponseTimeDialog (QWidget &parent, CaptureFile &cf, struct register_srt *srt, RpcFamily dlg_type, const QString filter)
void	addDceRpcProgram (_guid_key *key, struct _dcerpc_uuid_value *value)
void	addDceRpcProgramVersion (_guid_key *key)
void	addOncRpcProgram (uint32_t program, struct _rpc_prog_info_value *value)
void	addOncRpcProgramVersion (uint32_t program, uint32_t version)
void	updateOncRpcProcedureCount (uint32_t program, uint32_t version, int procedure)
void	setDceRpcUuidAndVersion (struct _e_guid_t *uuid, int version)
void	setOncRpcProgramAndVersion (int program, int version)
void	setRpcNameAndVersion (const QString &program_name, int version)
Public Member Functions inherited from ServiceResponseTimeDialog
	ServiceResponseTimeDialog (QWidget &parent, CaptureFile &cf, struct register_srt *srt, const QString filter, int help_topic=0)
Public Member Functions inherited from TapParameterDialog
	TapParameterDialog (QWidget &parent, CaptureFile &cf, int help_topic=0)
QTreeWidget *	statsTreeWidget ()
QLineEdit *	displayFilterLineEdit ()
QPushButton *	applyFilterButton ()
QVBoxLayout *	verticalLayout ()
QHBoxLayout *	filterLayout ()
void	drawTreeItems ()
Public Member Functions inherited from WiresharkDialog
	WiresharkDialog (QWidget &parent, CaptureFile &capture_file)
bool	fileClosed () const
	true if the file has been closed, false otherwise.
Public Member Functions inherited from GeometryStateDialog
	GeometryStateDialog (QWidget *parent, Qt::WindowFlags f=Qt::Window)
void	setWindowModality (Qt::WindowModality windowModality)

Static Public Member Functions
static TapParameterDialog *	createDceRpcSrtDialog (QWidget &parent, const QString, const QString opt_arg, CaptureFile &cf)
static TapParameterDialog *	createOncRpcSrtDialog (QWidget &parent, const QString, const QString opt_arg, CaptureFile &cf)
Static Public Member Functions inherited from ServiceResponseTimeDialog
static TapParameterDialog *	createSrtDialog (QWidget &parent, const QString cfg_str, const QString filter, CaptureFile &cf)
Static Public Member Functions inherited from TapParameterDialog
static const QString &	actionName ()
static void	registerDialog (const QString title, const char *cfg_abbr, register_stat_group_t group, stat_tap_init_cb tap_init_cb, tpdCreator creator)
static TapParameterDialog *	showTapParameterStatistics (QWidget &parent, CaptureFile &cf, const QString cfg_str, const QString arg, void *)

Protected Member Functions
virtual void	provideParameterData ()
Protected Member Functions inherited from ServiceResponseTimeDialog
void	addSrtTable (const struct _srt_stat_table *srt_table)
Protected Member Functions inherited from TapParameterDialog
void	contextMenuEvent (QContextMenuEvent *event)
void	addFilterActions ()
void	addTreeCollapseAllActions ()
QString	displayFilter ()
void	setDisplayFilter (const QString &filter)
void	setHint (const QString &hint)
void	setRetapOnShow (bool retap)
Protected Member Functions inherited from WiresharkDialog
virtual void	keyPressEvent (QKeyEvent *event)
virtual void	accept ()
virtual void	reject ()
void	beginRetapPackets ()
	Mark the start of a code block that retaps packets. If the user closes the dialog while tapping, the dialog will not be destroyed until endRetapPackets is called.
virtual void	endRetapPackets ()
	Mark the end of a code block that retaps packets. If the user has closed the dialog it will be desroyed at this point.
void	setWindowSubtitle (const QString &subtitle)
	Set the window subtitle, e.g. "Foo Timeouts". The subtitle and file name will be added to the dialog window title.
const QString &	windowSubtitle ()
virtual void	updateWidgets ()
bool	registerTapListener (const char *tap_name, void *tap_data, const char *filter, unsigned flags, tap_reset_cb tap_reset, tap_packet_cb tap_packet, tap_draw_cb tap_draw)
	Convenience wrapper for register_tap_listener. Tap listeners registered via this function are automatically removed during destruction. They can also be explicitly removed using remove_tap_listener or removeTapListeners.
virtual void	removeTapListeners ()
	Remove all tap listeners registered via registerTapListener.
bool	dialogClosed () const
	Check to see if the user has closed (and not minimized) the dialog.
int	retapDepth () const
	Check to see if we're currently retapping. If this is positive, tapping will fail in process_specified_records.
virtual void	captureFileClosing ()
	Called when the capture file is about to close. This can be used to disconnect taps and similar actions. updateWidgets() is called at the end. To enable/disable widgets captureFileClosed() is more suitable.
virtual void	captureFileClosed ()
	Called when the capture file was closed. This can be used to enable or disable widgets according to the state of file_closed_. updateWidgets() is called at the end.
Protected Member Functions inherited from GeometryStateDialog
void	loadGeometry (int width=0, int height=0, const QString &dialog_name=QString())
void	loadSplitterState (QSplitter *splitter=nullptr)

Additional Inherited Members
Signals inherited from TapParameterDialog
void	filterAction (QString filter, FilterAction::Action action, FilterAction::ActionType type)
void	updateFilter (QString filter)
Protected Slots inherited from ServiceResponseTimeDialog
void	fillTree ()
Protected Slots inherited from TapParameterDialog
void	filterActionTriggered ()
void	collapseAllActionTriggered ()
void	expandAllActionTriggered ()
void	updateWidgets ()
Protected Slots inherited from WiresharkDialog
void	captureEvent (CaptureEvent)
Protected Attributes inherited from ServiceResponseTimeDialog
struct register_srt *	srt_
Protected Attributes inherited from WiresharkDialog
CaptureFile &	cap_file_
bool	file_closed_

Member Function Documentation

provideParameterData()

void RpcServiceResponseTimeDialog::provideParameterData ( )

protectedvirtual

Reimplemented from ServiceResponseTimeDialog.

---

The documentation for this class was generated from the following files:

• /builds/wireshark/wireshark/ui/qt/rpc_service_response_time_dialog.h
• /builds/wireshark/wireshark/ui/qt/rpc_service_response_time_dialog.cpp
